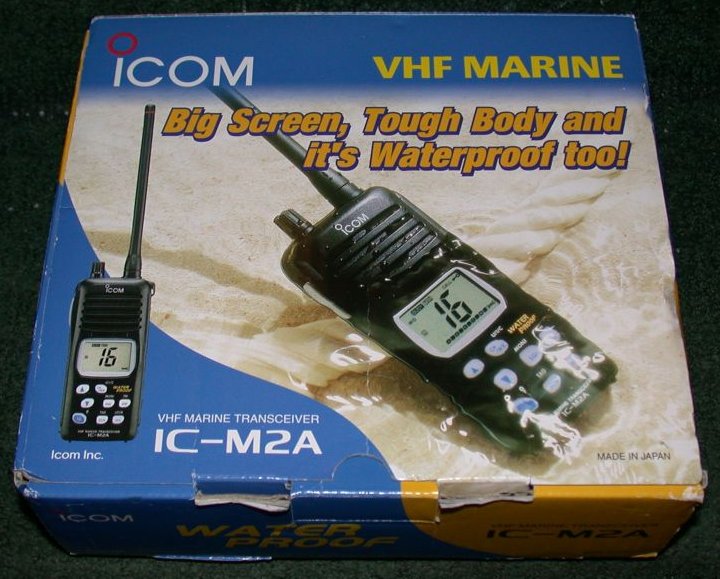

Icom IC-M2A
| Type: |
Professional Marine Transceiver |
| Frequency Range: |
RX: 156.025-163.275 MHz incl. weather channels
TX: 156.025-157.425 MHz |
| Modes: |
FM |
| RF Power Output: |
Hi: 5 W, Mid: 3 W, Lo: 1 W |
| Voltage: |
7.5 VDC |
| Current Drain: |
RX: 20-200 mA
TX: Max 1.5 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
61*135*41 mm |
| Weight: |
360 gr (incl BP-224) |
| Manufactured: |
2002-200x |
| Other: |
|
| Related Documents: |
User Manual (629 Kb) |
 |
